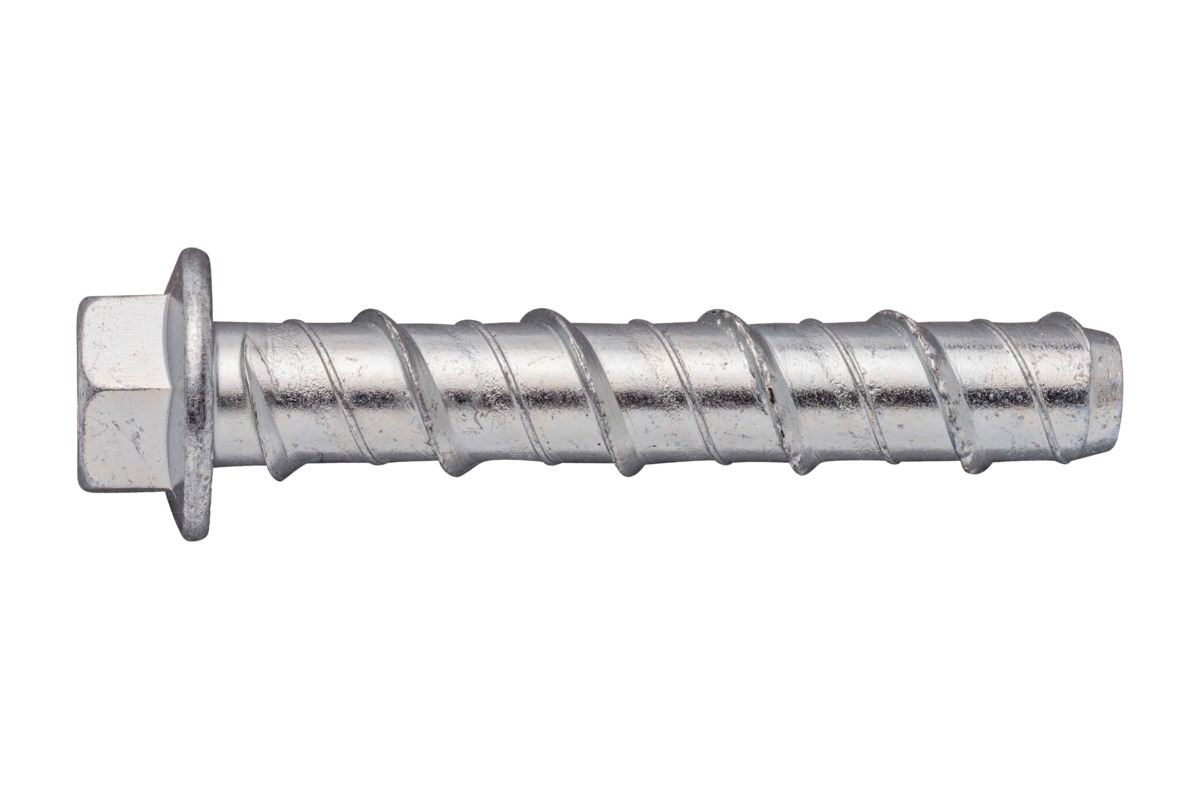

Concrete screws SB2-PLUS 16(18)x20/100*
Concrete screws SB2-PLUS 16(18)x20/100*
€ 111,49
In stock
Per ve en excl. btw
€
111,49 Packing unit
20 pieces
Characteristics:
- One piece heavy duty concrete anchor
- ETA Option 1 approval for cracked and uncracked concrete

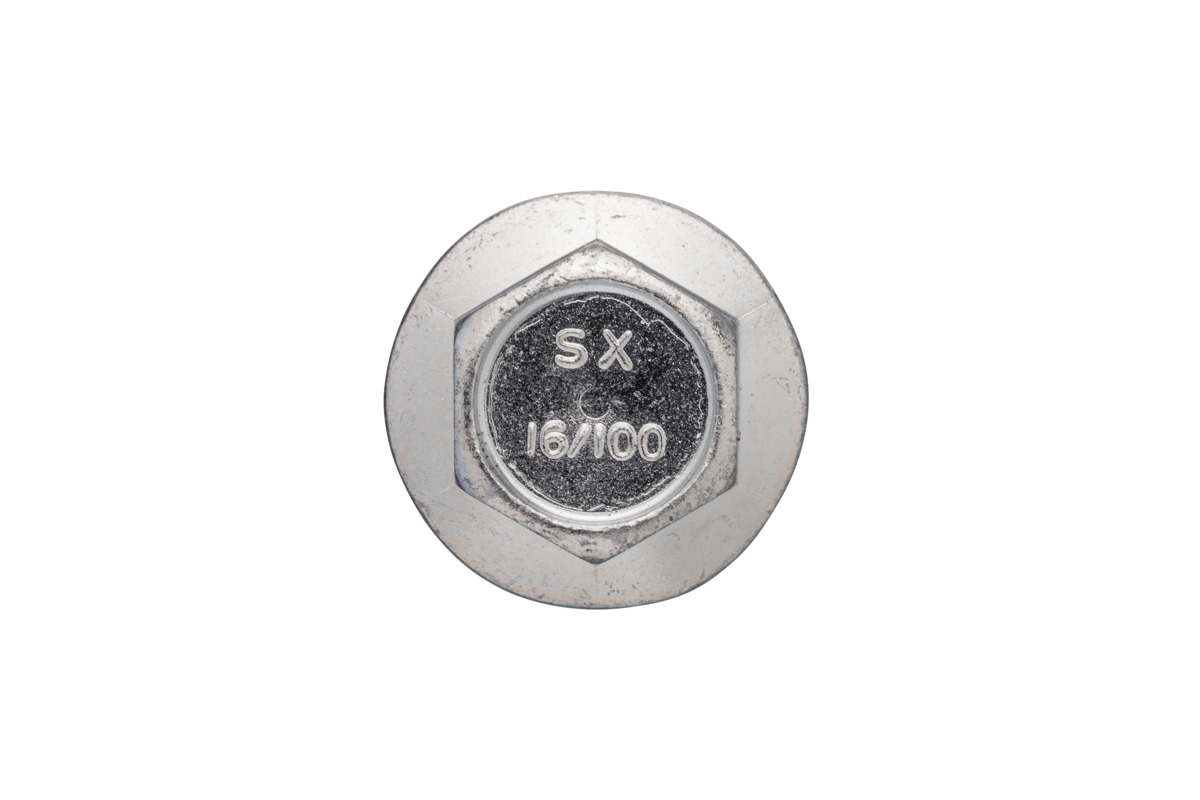

- Diameter and length identification on the head
- Up to 3 approved embedments depths per diameter
- Suitable for throughfixing
- Ease identification of drill- and thread diameter, f.e. 8(10)
Advantages:
- Quick installation; drill & drive!
- Underhead grip for better holding strength
- Removable and reusable
- Aesthetical appearance
- Suitable for close edge installation
Product description:
- Suitable for use in cracked and non-cracked concrete, masonry, solid stone and sand-lime brick Also available in stainless steel A4 and pan head version Also available with M8 / M10 female thread with ETA approval for applications in cracked and non-cracked concrete and hollow core slab Marking of diameter and anchor length on the head for easy inspection after mounting Virtually stress-free: suitable for very small edge and HOH distances Integrated washer with counter-threaded knurled profile for better securing of the workpiece Sawtooth profile with gradually increasing pitch for quick installation, even in very hard concrete Completely removable and limited reusability in case of temporary anchors Aesthetic finish
Product data:
- Drill diameter: 16 mm
- Length under head: 100 mm
- Diameter: 18 mm
- Max. clamp thickness / useful length / Tfix: 20 mm
- Spanner size: 21 mm
- Washer diameter: 36 mm
- Length x width x height (box): 155x120x115 mm
- Box contents: 20 st
- Carton contents: 80 st
- Number of boxes per master carton: 4 st
- Weight per box: 4050 gram
- Application: General Confirmations
- Basic material: Non-cracked concrete (compression zone), aerated concrete, Channel plate, Limestone / masonry
- ETA approval and certifications: ETA for concrete
- Material / corrosion: Carbon steel galvanized
- Product type: Concrete screws
- Head Configuration: hexagon head
Tension-free, constructive screw anchor suitable for heavy loads and small HOH and edge distances. For concrete, sand-lime brick and masonry. Integrated pressed flange with locking profile under the head. Dimensions listed on top of anchor for possible inspection. Beautiful finish on visible work.
