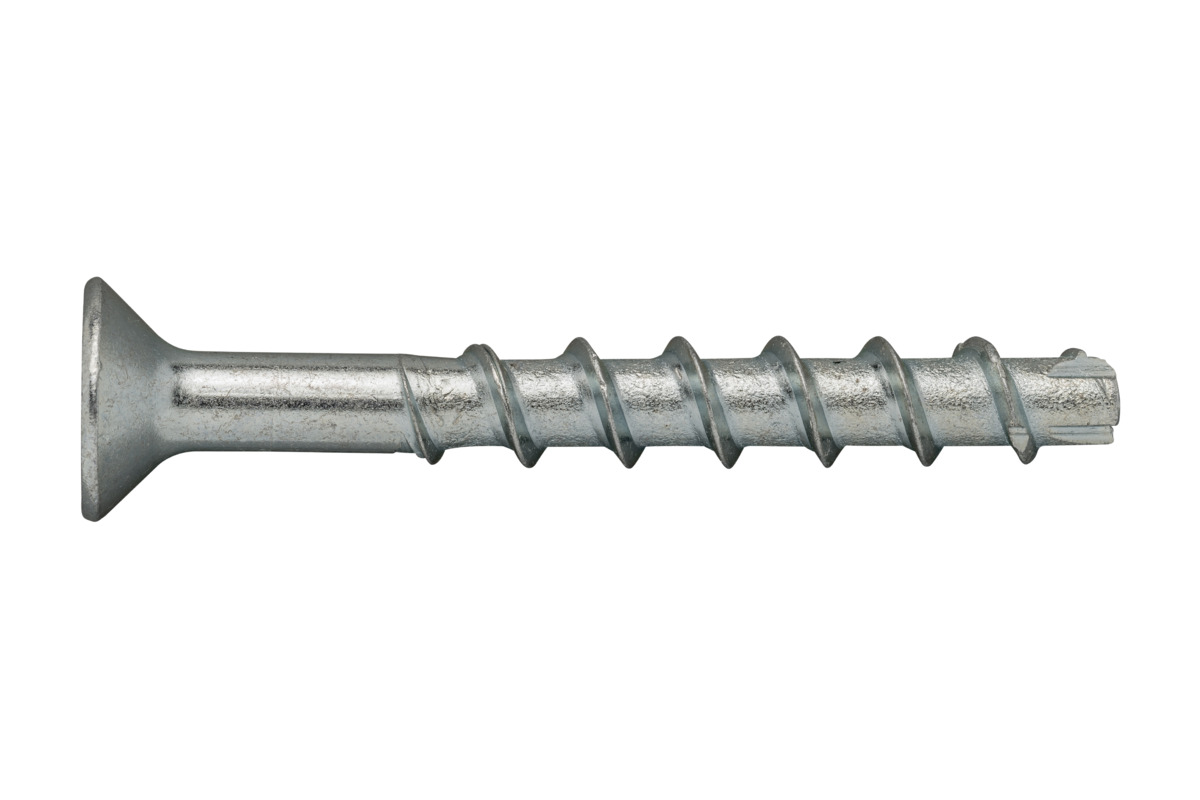

Concrete screws SB2-PLUS 10(12)x10/60
Documents
Downloads
Concrete screws SB2-PLUS 10(12)x10/60
€ 71,24
In stock
Per ve en excl. btw
€
71,24 Packing unit
50 pieces
Characteristics:
- Countersunk head for smooth finish
- High performance one-piece screw
- Through fixing
- ETA-1 approval for cracked and uncracked concrete
Advantages:
- Quick installation; drill & drive!
- Removable and reusable
- Aesthetical appearance
- Suitable for close edge installation
Product description:
- ETA-1 approval for use in cracked and uncracked concrete Also available in hexagon head, stainless steel A4 and flat dome head version Also available with M8 / M10 internal thread with ETA approval for applications in cracked and uncracked concrete and channel plate Suitable for concrete, solid brick and sand-lime brick Virtually stress-free: suitable for very small edge and HOH distances Sawtooth profile on the gradually increasing pitch for quick installation, even in very hard concrete Completely removable and limited reusable in case of temporary anchors Aesthetic finish F120 fire approval Fast structural calculations possible with the free Sympafix DesignFix software
Product data:
- Drill diameter: 8 mm
- Length: 80 mm
- Length under head: 80 mm
- Diameter: 10 mm
- Max. clamp thickness / useful length / Tfix: 35 mm
- Cup thickness: 10
- Bit size (torx): T-40
- Length x width x height (box): 155x120x115 mm
- Box contents: 50 st
- Carton contents: 200 st
- Number of boxes per master carton: 4 st
- Basic material: Cracked concrete (tensile zone), Non-cracked concrete (compression zone), aerated concrete, Channel plate, Limestone / masonry
- Application: General Confirmations
- ETA approval and certifications: ETA for concrete, Fire approval for 90 minutes, Fire approval for 120 minutes
- Material / corrosion: Carbon steel galvanized
- Product type: Concrete screws
- Head Configuration: Sunken head
Stress-free, structural screw anchor suitable for heavy loads and small HOH and edge distances. For concrete, sand-lime brick and masonry. ETA approved for structural permanent fixings in both the tension and compression zones of concrete. Countersunk head for smooth finish.
Sympafix BV is a young company in structural anchoring for the construction industry, with more than 100 years of experience.
